Digital Oscilloscope

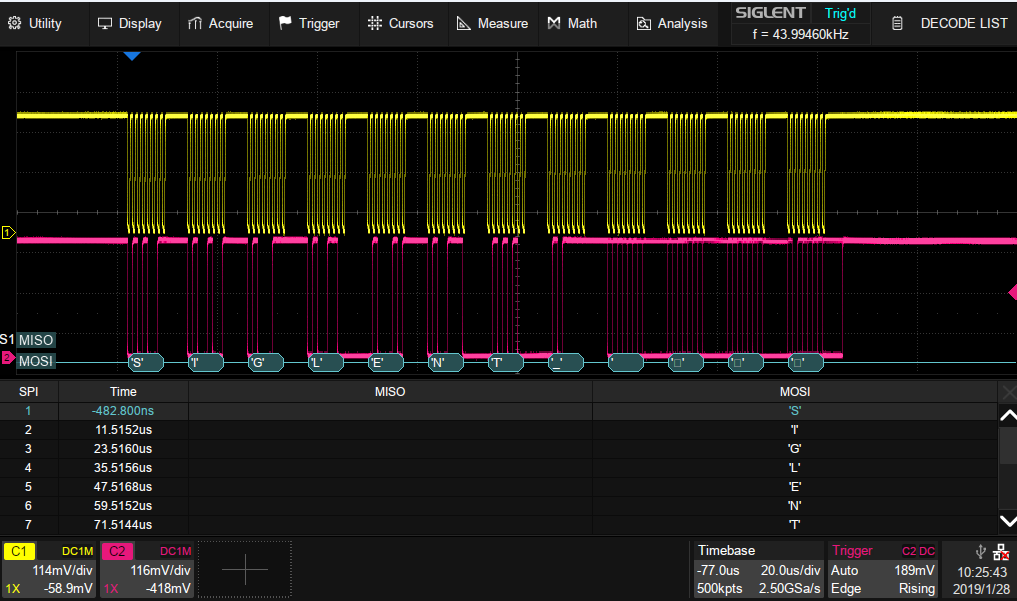

SIGLENT oscilloscopes provide the perfect balance between features and price. With bandwidths from 50 MHz to 4 GHz, low noise vertical scales down to 500 uV/div, and features like compliance test，serial decoding, sequence function, Eye diagram / Jitter analysis and MSO capabilities, SIGLE will quickly become your scope of choice.

Model	Bandwidth	Channel	Sampling Rate	Waveform Update Rate	Memory Depth

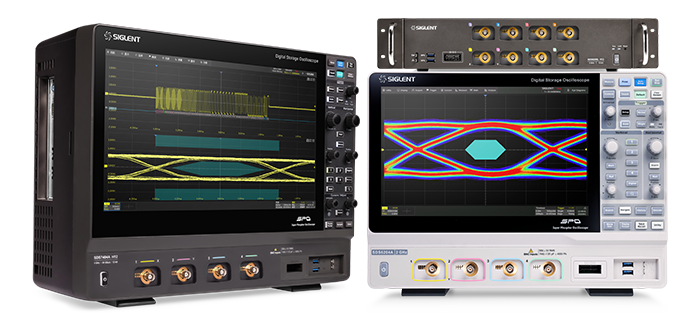

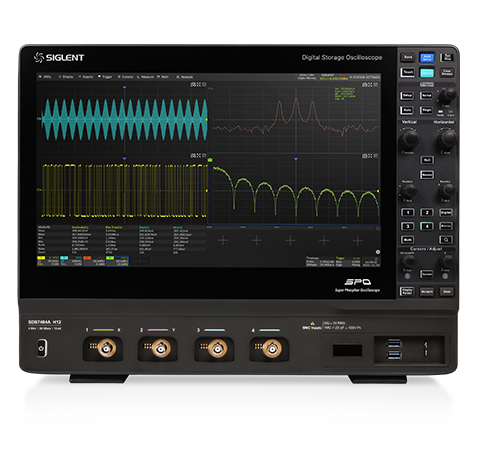

SDS7000A	3,4 GHz	4+EXT	20 GSa/s(dual-channel)	1,000,000 wfm/s	Standard: 500Mpts/ch Optional: 1 Gpts/ch

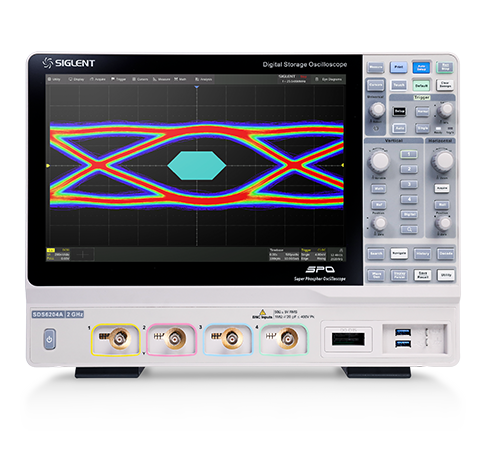

SDS6000A	500MHz, 1GHz, 2GHz	4+EXT	5GSa/s(10GSa/s ESR) Per Channel	170,000 wfm/s(normal mode) 750,000 wfm/s(sequence mode)	500Mpts

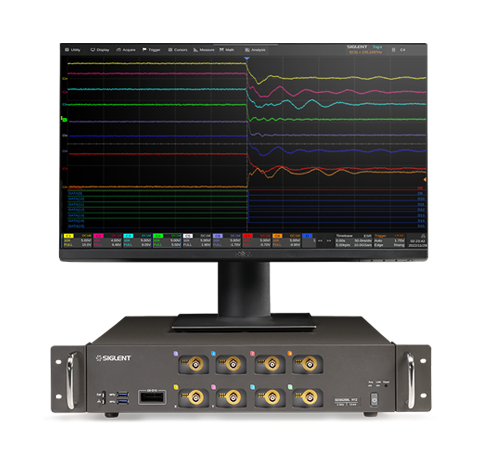

SDS6000L	500MHz, 1GHz, 2GHz	8/4+EXT	5GSa/s(10GSa/s ESR) Per Channel	170,000 wfm/s(normal mode) 750,000 wfm/s(sequence mode)	500Mpts

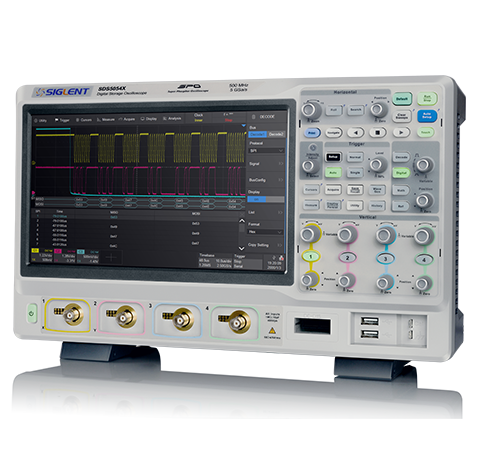

SDS5000X	350MHz, 500MHz, 1GHz	2/4+EXT	5 GSa/s (single-channel) 2.5 GSa/s (dual-channel)	110,000 wfm/s(normal mode) 500,000 wfm/s(sequence mode)	250Mpts(single-channel) 125Mpts(dual-channel)

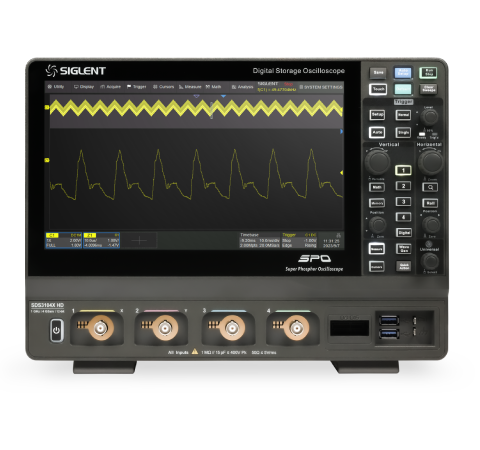

SDS3000X HD	350 MHz, 500 MHz, 1 GHz	4+ EXT	12- bit	4GSa/s	890,000 wfm/s

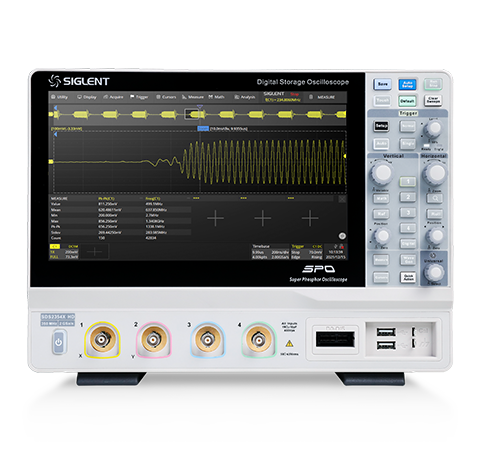

SDS2000X HD	100 MHz, 200 MHz, 350 GHz	4 +EXT	2 GSa/s(interleaving mode)	Normal mode: 100,000 wfm/s; Sequence mode: 500,000wfm/s	200 Mpts/ch(interleaving mode)

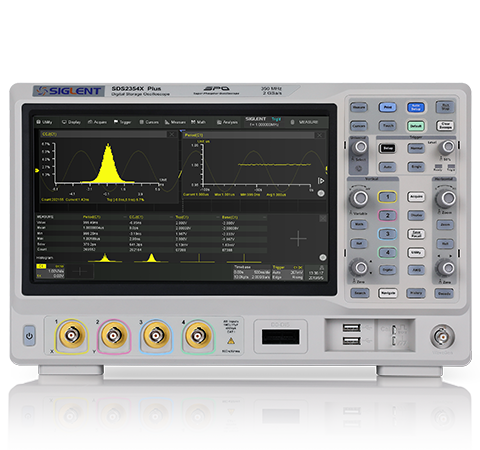

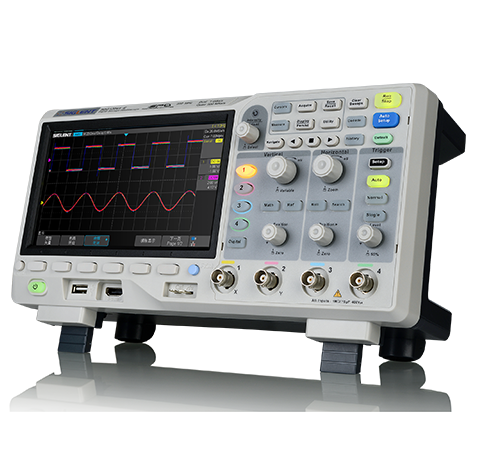

SDS2000X PLUS	100 MHz, 200 MHz, 350 MHz	2/4 +EXT	2 GSa/S	500,000 wfm/s	200 Mpts/ch

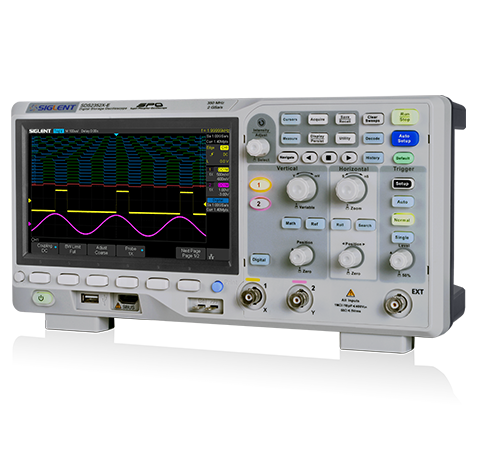

SDS2000X-E	200MHz, 350MHz	2+EXT	2 GSa/s (single-channel)	110,000 wfm/s(normal mode) 400,000 wfm/s(sequence mode)	28Mpts(single-channel) 14Mpts(dual-channel)

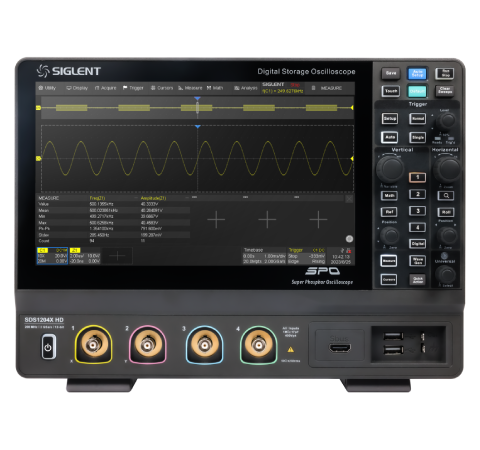

SDS1000X HD	100 MHz, 200 MHz	2+EXT,4 +EXT	12-bit	2 GSa/s	500,000 wfm/s

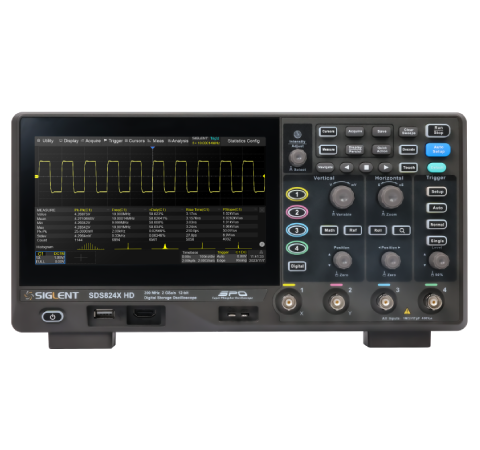

SDS800X HD	70MHz, 100MHz, 200 MHz	2, 4	12-bit	2 GSa/S	500,000 wfm/s
SDS1000X-E	100 MHz, 200 MHz	2CH+EXT/4CH	1 GSa/S	100,000 wfm/s(normal mode) 400,000 wfm/s(sequence mode)	14 Mpts(single-channel) 7Mpts(dual-channel)

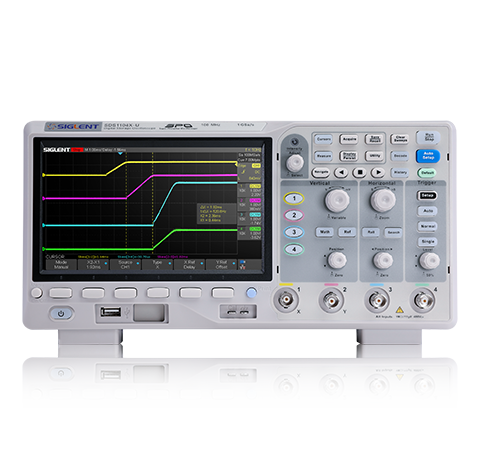

SDS1000X-U	100MHz	4 CH	1 GSa/s	400,000 wfm/s(sequence mode)	14Mpts

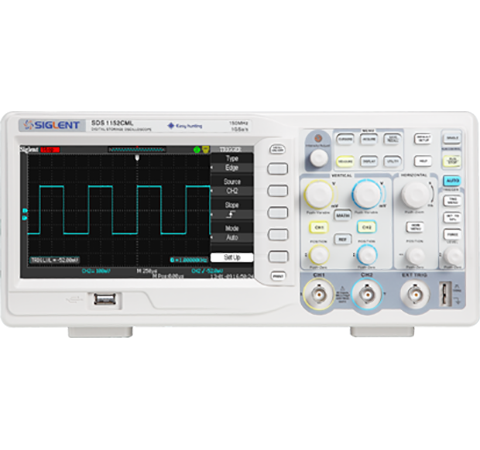

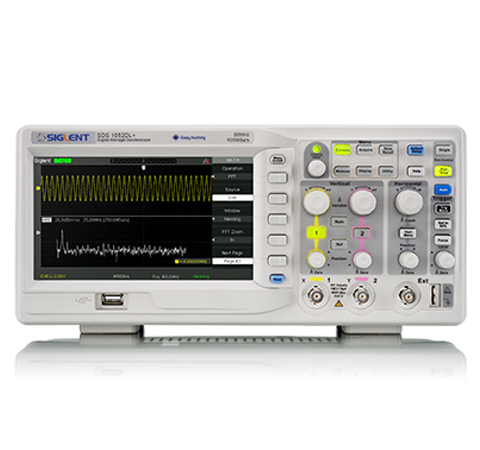

SDS1000CML +	100MHz, 150MHz	2 +EXT	1 GSa/s	-	2Mpts
SDS1000DL +	50MHz	2 CH	500 MSa/s	-	32kpts
