LCR Meter/Impedance Analyzer

MICROTEST LCR/Impedance Analyzer measures the electrical properties of passive components (inductors, capacitors, resistors), including inductance, capacitance, resistance, quality factor, dissipation factor, and impedance.

6632/6632S Impedance Analyzers operate from 10Hz to 50MHz and offer features like sweep analysis, multi-step listings, and Meter mode measurements. They come with built-in measurements of dielectric constant (εr) and magnetic permeability (μr), eliminating manual calculations or extra software. 6632S model supports seven different equivalent circuit models for a faster and more precise understanding of parasitic components' impact on impedance.

For LCR testing, there are high-frequency 6630 series (1M/3M/5M/10M/20M/30M/50MHz) and basic 6360 series (20k/100k/500k/1MHz) options.

6630 series is ideal for automated production line testing, especially for high-speed production, while the 6360 series is suitable for general quality control and incoming material inspection (IQC).

DC Bias Current Test System

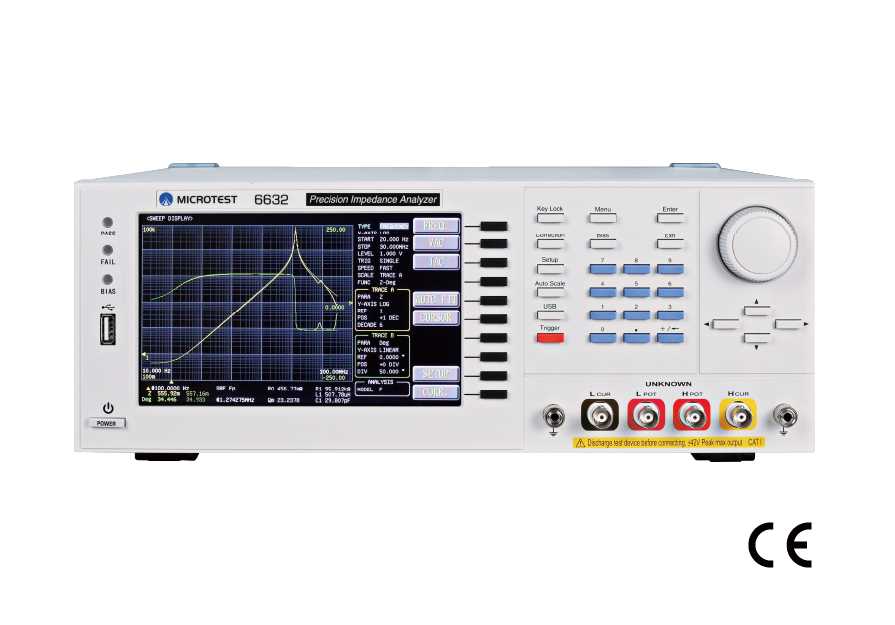

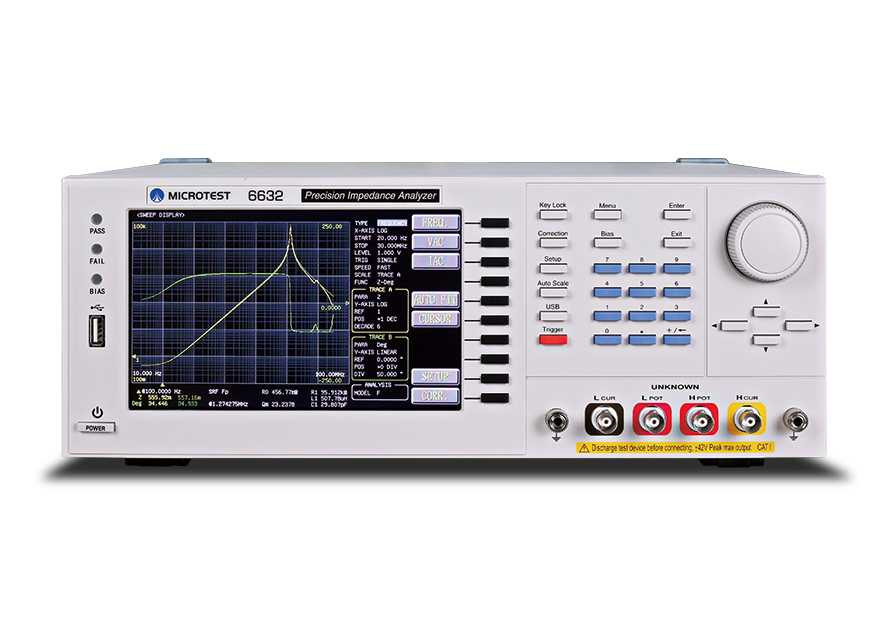

Impedance Analyzer 6632 Series
6632-1/3/5/10/20/30/50

  • Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
  • Basic accuracy up to ±0.08% (typical ±0.05% )
  • Automatic Level Control (ALC)
  • Output impedance 25Ω/100Ω, switchable
DC Bias Current Test System

Impedance Analyzer 6632S Series
6632-1S/3S/5S/10S/20S/30S/50S

  • Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
  • Basic accuracy up to ±0.08% (typical ±0.05% )
  • Equivalent Circuit Analysis
  • Automatic Level Control (ALC)
DC Bias Current Test System

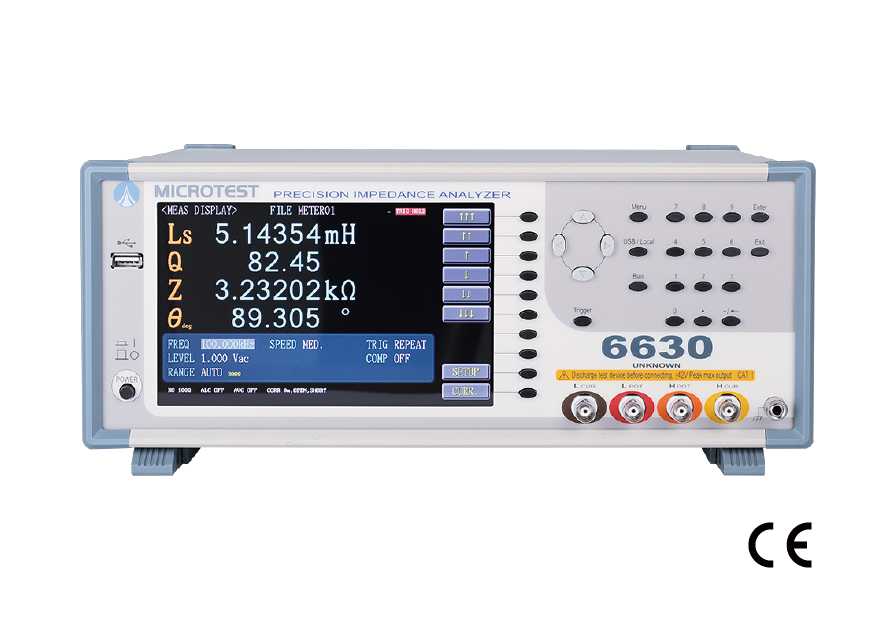

LCR Meter 6630 Series
6630-1/3/5/10/20/30/50

  • Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
  • Basic accuracy up to ±0.05%
  • Automatic Level Control (ALC)
  • Output impedance 25Ω/100Ω, switchable
DC Bias Current Test System

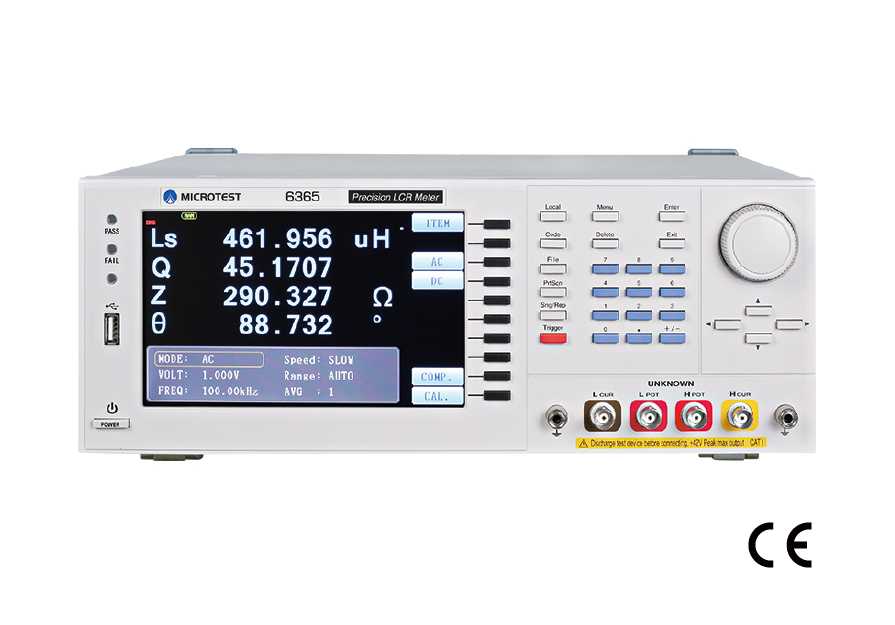

LCR Meter 6360 Series
6363/6364/6365/6366/6367

  • Test Frequency 10Hz-1MHz
  • Output Impedance 100Ω
  • Open Circuit/Short Circuit
  • Meter Mode
  • List Mode
  • 7.0" TFT, 800×480 color screen
  • Four Parameters Displayed
DC Bias Current Test System

LCR Meter 6365A/6367A
Electrochemical Applications

  • Ultra Low Frequency 0.1Hz-200k/1MHz
  • Output Impedance 100Ω
  • Open Circuit/Short Circuit
  • Meter Mode
  • List Mode
  • 7.0" TFT, 800×480 color screen
  • Four Parameters Displayed Simultaneously
DC Bias Current Test System

DS Bias Current Test System

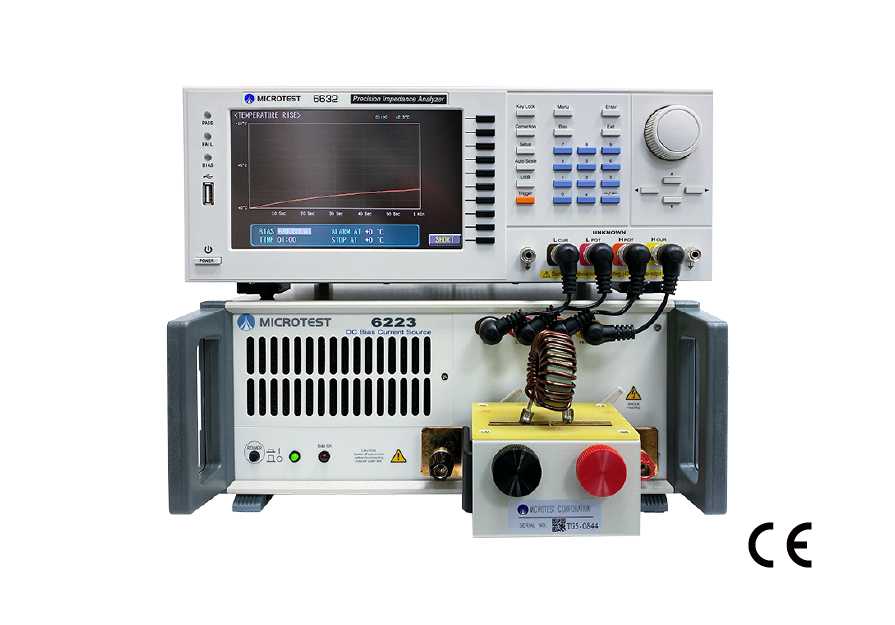

6632+ Series

  • Current and frequency graphic scanning analysis
  • Frequency response 100Hz-30MHz/10MHz/3MHz
  • DC Bias current output Max.320A/120A/60A/30A
  • DCR Measurement function
  • Built-in the Permeability-μr
  • Long-term consecutive maximum power output
  • Support meter mode and list mode, sweep mode
DC Bias Current Test System

DS Bias Current Test System

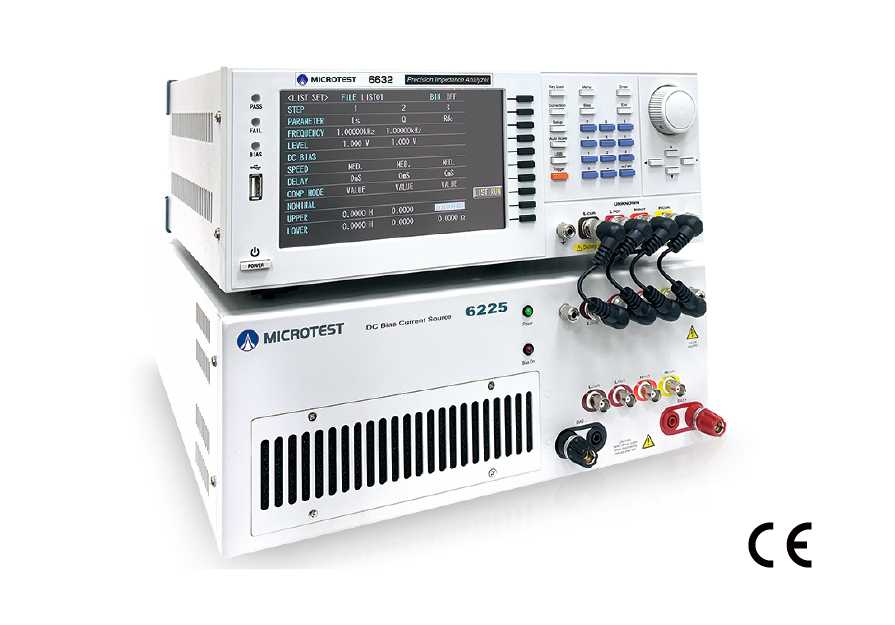

6632S+ Series

  • Current and frequency graphic scanning analysis
  • Frequency response 100Hz-30MHz/10MHz/3MHz
  • DC Bias current output Max.320A/120A/60A/20A
  • Equivalent Circuit Analysis-6632S
  • DCR Measurement function
  • Built-in the Permeability-μr
DC Bias Current Test System

DS Bias Current Test System

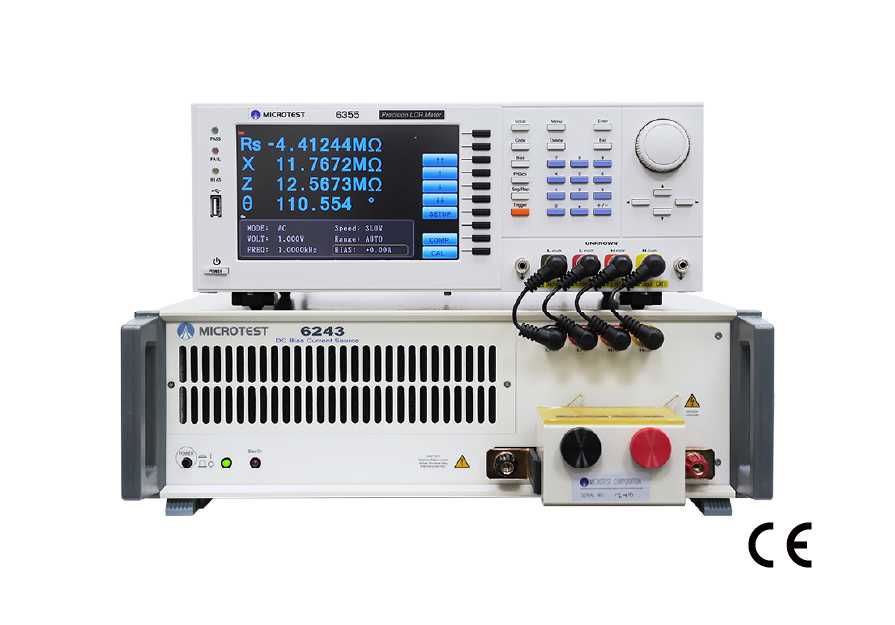

6350+ Series

  • Frequency response 100Hz-200k/500kHz
  • Supports maximum output DC bias current of 320A/120A
  • Can sustain maximum poweer output for long
  • Long-term consecutive maximum power output
  • Open/short circuit calibration function
