 RF Signal Generator

REVOTRON SSG3000X, SSG5000X, SSG5000A, SSG6000A series RF signal generators have output frequency up to 40 GHz, maximum output power of +26 dBm, high-purity phase noise as low as -135 dBc/Hz, and internal baseband source bandwidth of 150 MHz; Support a variety of modulation methods, including AM/FM/ PM modulation, pulse modulation, IQ modulation, etc. SSG5000X has built-in IQ baseband source, which can generate commonly used digital modulation signals, as well as 5G NR, WLAN, LTE, WCDMA, GSM, CDMA, BLUETOOTH.

Description of the image
Model Frequency Frequency I/Q Modulation Max output Phase Noise Display

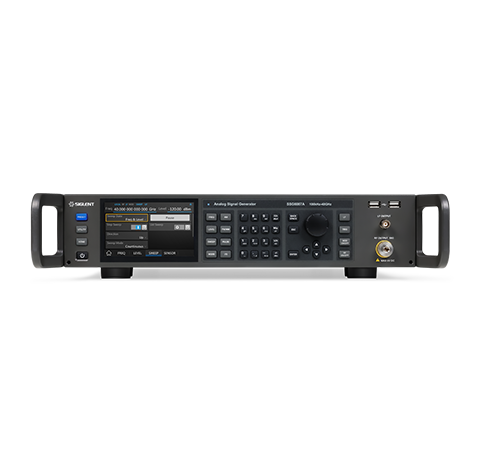

SSG6000A
SSG6000A 		100 kHz – 40 GHz 0.01 Hz YES +22 dBm -135 dBc/Hz @1 GHz, offset 20 kHz (typ.) 5 inch TFT-LCD (800×480)

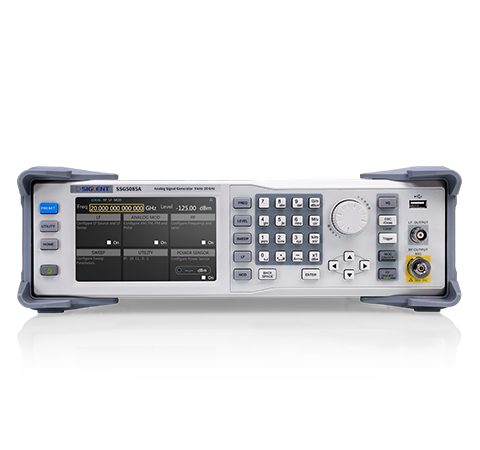

SSG5000A
SSG5000A 		9 kHz – 13.6/20 GHz 0.001 Hz NO +25 dBm -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) 5 inch TFT-LCD (800×480)

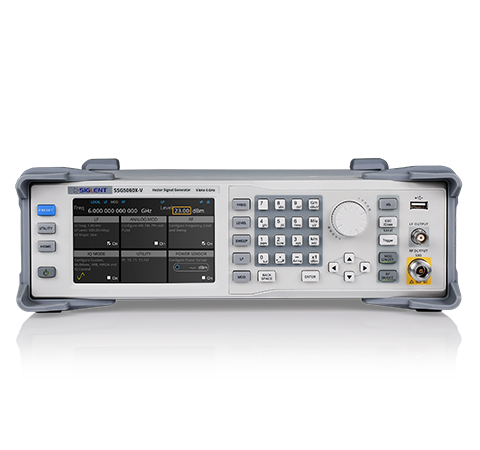

SSG5000X
SSG5000X 		9 kHz – 4/6 GHz 0.001 Hz YES +26 dBm -120dBc/Hz @1 GHz, offset 20 kHz (typ.) 5 inch TFT-LCD (800×480)

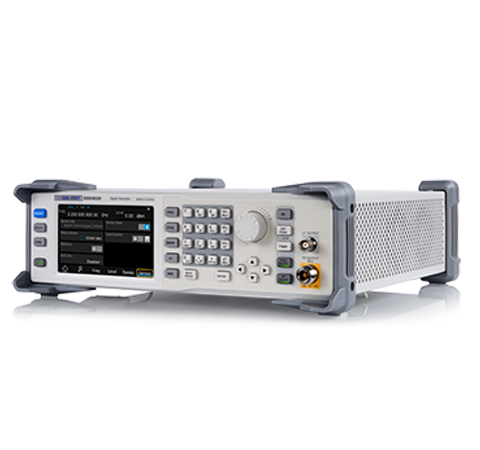

SSG3000X
SSG3000X 		9 kHz – 3.2 GHz 0.01 Hz YES +20 dBm -110 dBc/Hz offset 20 kHz@1 GHz (typ.) 5 inch TFT-LCD (800×480)
